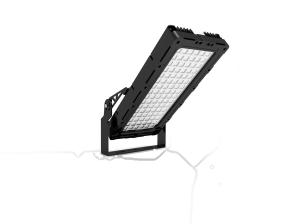

Highmast light led sports floodlights With Lumileds 3030 Led Chips for industrial use

Name: Highmast light led sports floodlights With Lumileds 3030 Led Chips for industrial use
Brand: DUALRAYS
Price: 1 USD

Quality Highmast light led sports floodlights With Lumileds 3030 Led Chips for industrial use wholesale

Brand Name : DUALRAYS

Model Number : DR-SPL900-EGX

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen,China

MOQ : 1pcs

Price : negotiable

Delivery Time : 5-15 Bussiness Day

Packaging Details : Netural Package/OEM and ODM Package Available

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000PCS/Month

Rated Wattage : 900W

Flux : 135000lm

Installation : Bracket

Cover : PC

L70 : >65000Hrs

Housing : Die-Casting Al

LED Light Source : SMD5050

130~140LPW / 150~160LPW Optional : 130~140LPW / 150~160LPW Optional

LED driver : Meanwell ELG / HLG Optional

Dimming(Optional) : 1-10V, DALI,PWM,Zigbee for Option

Contact Now

Highmast light led sports floodlights With Lumileds 3030 Led Chips for industrial use

Highmast light led sports floodlights With Lumileds 3030 Led Chips for industrial use

Options:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 25°/40°/50°/90°;

> Aiming Device: Laser Pointer;

> Light Glare: Shield;

> Logistics areas (Ports)

> Stadiums and Racing tracks

> Public squares

> Apron lighting (Airports), Parking and Industrial areas

> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

Model No.	DR-SPL300-DGXX	DR-SPL600-DGXX	DR-SPL900-DGXX	DR-SPL1200-DGXX	DR-SPL1500-DGXX	DR-SPL1800-DGXX
System Watts/W	300W	600W	900W	1200W	1500W	1800W
System Efficiency/LPW	130~140LPW / 150~160LPW Optional
Lumen Output (Max) /lm	48.000±5%	96.000±5%	144.000±5%	192.000±5%	240.000±5%	288.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz
LEDs Light Source	SMD3030 / SMD5050 Optional
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	Symmetrical 25°/40°/50°/90° beam angle optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Highmast light led sports floodlights With Lumileds 3030 Led Chips for industrial use

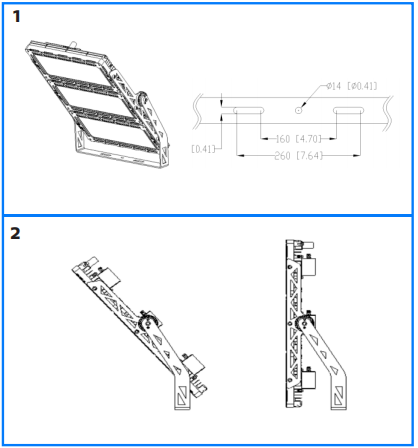

1. Figure 1 shows the bolt pattern of the mount.

2.Secure the fixture using the 2 mounting

holes.

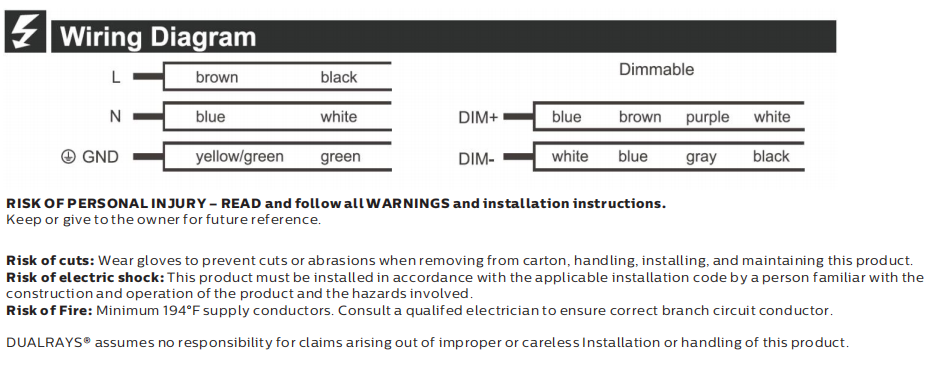

3.Connect the dimming wires.

4.Adjust the lamp angle to what you need.

Highmast light led sports floodlights With Lumileds 3030 Led Chips for industrial use

Highmast light led sports floodlights With Lumileds 3030 Led Chips for industrial use

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
Highmast light led sports floodlights With Lumileds 3030 Led Chips for industrial use

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　

(Partnership)　
Highmast light led sports floodlights With Lumileds 3030 Led Chips for industrial use
