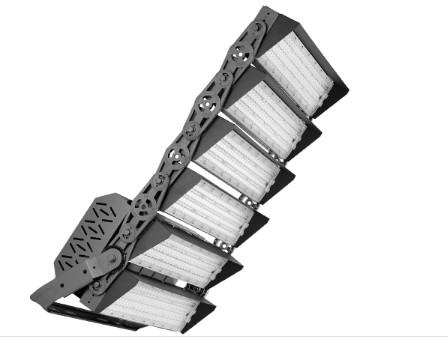

600W Professional Led Basketball Court Lighting High Mast Sports Flood Light For Stadium

Name: 600W Professional Led Basketball Court Lighting High Mast Sports Flood Light For Stadium
Brand: DUALRAYS
Price: 1 USD

Quality 600W Professional Led Basketball Court Lighting High Mast Sports Flood Light For Stadium wholesale

Brand Name : DUALRAYS

Model Number : DR-SPL600-DG2

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen,China

MOQ : 1pcs

Price : negotiable

Delivery Time : 5-15 Bussiness Day

Packaging Details : Netural Package/OEM and ODM Package Available

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000PCS/Month

Rated Wattage : 600W

Flux : 90000lm

Chips : Lumileds 3030

CCT : 3000-6500K

Life Span : 50000Hrs

Warranty : 5 Years

Contact Now

600W Professional High Mast Sports Flood Light for Stadium

600W Professional Led Basketball Court Lighting High Mast Sports Flood Light For Stadium

Options:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 25°/40°/50°/90°;
> Efficiency : 130~140LPW,150~160LPW

> Aiming Device: Laser Pointer;
> Light Glare: Shield;

> Multiple and multipurpose sports facilities and arenas

> Stadiums and Racing tracks

> Public squares

> Outdoor arenas

> Indoor sports arenas and halls

Model No.	DR-SPL250-DGXX	DR-SPL500-DGXX	DR-SPL750-DGXX	DR-SPL1000-DGXX	DR-SPL1250-DGXX	DR-SPL1500-DGXX
System Watts/W	250W	500W	750W	1000W	1250W	1500W
System Efficiency/LPW	150~160LPW
Lumen Output (Max) /lm	40.000±5%	80.000±5%	120.000±5%	160.000±5%	200.000±5%	240.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	20°/40°/60°/90°/140*60° Optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG
IP Rating	IP66
Dimming(Optional)	1-10V, DALI,PWM,Zigbee
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

600W Professional Led Basketball Court Lighting High Mast Sports Flood Light For Stadium

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-DGXX	8.5	585315260	9.7	1PCS/CTN
DR-SPL600-DGXX	17.4	625620260	18.8	1PCS/CTN
DR-SPL900-DGXX	26.1	625820260	28.2	1PCS/CTN
DR-SPL1200-DGXX	34.2	6251150260	36.5	1PCS/CTN
DR-SPL1500-DGXX	39.3	7901240260	42.5	1PCS/CTN
DR-SPL1800-DGXX	42.1	7901240260	46.3	1PCS/CTN

Professional High Mast Sports Flood Light for Stadium

600W Professional Led Basketball Court Lighting High Mast Sports Flood Light For Stadium

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
600W Professional Led Basketball Court Lighting High Mast Sports Flood Light For Stadium

(DIALUX Simulation)
