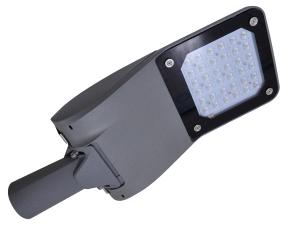

30W Flat LED Street Lights For Outdoor Parking Area Illumination

Name: 30W Flat LED Street Lights For Outdoor Parking Area Illumination
Brand: DUALRAYS
Price: 1 USD

Quality 30W Flat LED Street Lights For Outdoor Parking Area Illumination wholesale

Brand Name : DUALRAYS

Model Number : DR-ST030-DG2

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen,China

MOQ : 2pcs

Price : negotiable

Delivery Time : 5-15 Bussiness Day

Packaging Details : Netural Package/OEM and ODM Package Available

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000PCS/Month

Input : AC100-277V

IP Grade : IP66

Bracket : ø60

Cover : Tempered Glass

CRI : >80Ra

Flicker : Flicker free

Contact Now

30W Flat LED Street Lights For Outdoor Parking Area Illumination

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty,7 or 10 years warranty negotiated;
Options:

> 10KA SPD,20KA Meanwell SPD optional;

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;

> Customized supported for special projects;

* Walkways.

* Loading Area.

* Parking lot.

Model No.	DR-ST060-DG1
Rated Power/W	60
Systen Efficiency/LPW	140
Color Temperature	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
AC Input Volage/V	AC100~277V 50/60Hz
Power Factor	PF>0.95
Starting Time	<0.1
LED Driver	Meanwell
UGR	<25
THD	<10%
Storage Temperature	-40 ~ +85℃
Certificate	CE ROHS D-MARK SAA

30W/60W Version
30W Flat LED Street Lights For Outdoor Parking Area Illumination

90W,120W/150W/180W Version

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
30W Flat LED Street Lights For Outdoor Parking Area Illumination

DALI Device
30W Flat LED Street Lights For Outdoor Parking Area Illumination

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Packaging Information
30W Flat LED Street Lights For Outdoor Parking Area Illumination

30W Flat LED Street Lights For Outdoor Parking Area Illumination

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
30W Flat LED Street Lights For Outdoor Parking Area Illumination

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
30W Flat LED Street Lights For Outdoor Parking Area Illumination

(Partnership)
