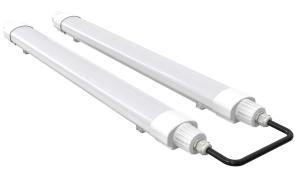

Light Durable PC Housing LED Tri Proof Light IP66 IK10 Long Life Factory Warehouse
> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;
> BOKE flicker-free constant current driver is isolated away from the heat source of the LEDs,keeps the stability and performance of the driver for long life, quick responds,no flicker, lightning protection, PFC function,0-10V,DALI dimming and PIR sensor;;
> Single or Double wiring;
> IP66 and IK10 for all industrial areas of application;
> Eco full plastic light design,save your cost and freight;
> Emergency, intelligent control devices available;
> Luminaire coated in an environmentally friendly polyester powder formulated for a durable and long-lasting color in a silvery,black and
white finish. No toxic heavy metals, VOC, or mercury were used in the design;
Options: > Driver and LEDs: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver. LEDs apply EPISTAR, low decay, long life, keep stable work. Both can be customized if you need other brands.
> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

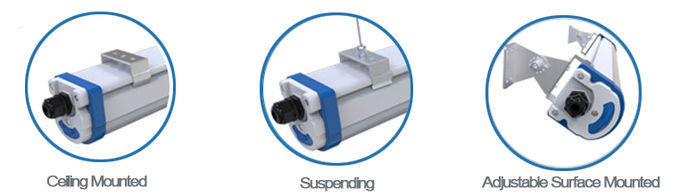

> Installation: Suspension, Ceilign Mounted and adjustable surface mount.
> Single or double wiring and connection.
> Customized supported for special projects.
* Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations
| Model No. | DR-TP020-BG2XPX | DR-TP030-BG4XPX | DR-TP040-BG4XPX | DR-TP040-BG5XPX | DR-TP050-BG5XPX |
| System Watts/W | 20W | 30W | 40W | 40W | 50W |
| System Efficiency/LPW | 120LPW / 140LPW Optioanl |
| Lumen Output/lm | 2.400/2.800±5% | 3.600/4.200±5% | 4.800/5.600±5% | 4.800/5.600±5% | 6.000/7.000±5% |
| Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) |
| LEDs Light Source | SMD2835 |
| SDCM | <6 |
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) |
| CRI/Ra | >80Ra (>70Ra for Option) |
| Power Factor | >0.94 |
| THD | <10% |
| Beam Angle(Optional) | 120° |
| UGR | <22 |
| LED Driver | DUALRAYS Own Developed High PF Interior Driver |
| IP Rating | IP65 |
| IK Level | IK08 |
| Dimming(Optional) | 1-10V |
| Sensor(Optional) | No |
| Emergency(Optional) | No |
| Protection Class | ClassⅠ |
| Finishing Color(Optional) | White RAL9016 Optional |
| Material | PC+PC |
| Lifespan/hrs | 50.000 Hrs (Ta=30℃@L70) |
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) |
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) |
| Installation(Optional) | Suspension / Ceiling Mounting Optional |
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
| Character/Length | 2ft | 4ft | 5ft | |
| A | 600mm | 1200mm | 1500mm |
| B | 74mm | 74mm | 74mm |
| C | 74m | 74mm | 74mm |
(I) Emergency Function
DALI Device
Packaging Information
Shipment
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q1: What is the warranty?
RE: For the D2 Series LED triproof light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2: What are the applications of your D2 tri-proof light?
RE:Our tr-proof light can be applied in Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor, etc.
Q3: Can I buy the luminaire housing only?
RE: We normally sell the entire luminaire.
Q4: What is your production time?
RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.
Q5: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, please send us your demand and parameters of your applications, we'll work out best solutions for you, IES files also can be downloaded on our Website or inquire us to send.
Q6: What’s your shipping method ?
RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.
Q7: What’s the payment methods you can accept ?
RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.
Welcome to contact us for more information.
Let's meet DUALRAYS from below pictures!
Why DUALRAYS?
* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;
* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;
* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;
* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.
* Ensuring our customers get best product and service is our main mission.
ISO9001:2008 ISO14001:2004
The best quality innovation award Shenzhen Hi-tech Enterprise
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
