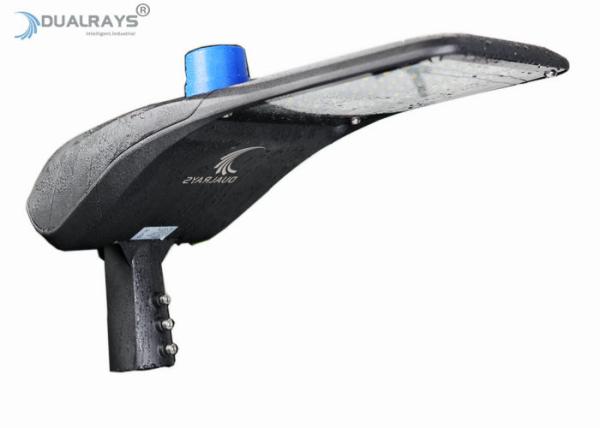

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Product Categories
DUALRAYS LIGHTING Co.,LTD.
Contact Now

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Brand Name : DUALRAYS

Model Number : DR-ST30-DG1

Certification : CE,RoHS,LM79,LM80

Place of Origin : Shenzhen, China

MOQ : 1pcs

Price : Negotiated

Payment Terms : Western Union, T/T, L/C

Supply Ability : 100000PCS/Month

Delivery Time : 5-15 Business Days

Packaging Details : Netural Package/OEM and ODM Package Available

Rated Power : 30W

LEDs Typ/Qty : SMD3030 72pcs

IP Rating : IP66

Switching Cycle before Failure : 100,000

Life Span : >50,000

Warranty : 5 years

Contact Now

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Dualrays 30W S4 Series LED Street Light-- Data Sheet

Model No. DR-ST30-DGX
Rated Power/W 30W
Systen Efficiency/LPW 150LPW
Lumen Output/ Im 45.000+5%
Rated Input Voltage/V AC100~277V 50/60Hz
LED Light Source SMD5050
SDCM <6
Power Factor >0.95
THD <10%
Beam Angle (Optional) Type I/ Type II (Long and medium)/ Type III (Medium)/Type IV (Medium)/Type V (Medium)
UGR <25
Surge Protection 6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional
LED Driver Meanwell ELG/HLG, Sosen
Dimming options 0/1-10V/PWM/DALI/Zigbee
Finishing Color (Optional) Black RAL9017/ White RAL9016
Material Aluminum+PC+Toughened Glass
Life Span/hrs >50000
Pipe Diameter ø60mm
Certificate CE,ROHS,TUV/GS,LM79,LM80

Dualrays 30W S4 Series Outdoor LED Street Light--Details:
> Excellent heat dissipation with Die-casting Al ;
> Surge Protection: 6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional;
> IP66 and IK10 for outdoor street lighting application;
> Adopting SMD3030 LEDs light source, high output lighting efficiency 140lm/W, high Color Rendering Index (CRI>70/80Ra);
> Class I Protection;
> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> Operation Temperature: -40 ~ +55℃;
> Storage Temperature: -40 ~ +55℃.

Dualrays 30W S4 Series Outdoor LED Street Light--Options:
> Driver: Meanwell ELG/HLG or Sosen;
> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming optional;
> Surge Protection: 10KA SPD,20KA Meanwell SPD for option;
> Black RAL9017/ White RAL9016 optional;
> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;
> Customized supported for special projects;
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee
* Roadways.
* Avenues.
* Walkways.
* Loading Area.
* Parking lot.
* Playground.
* Sport and Stadium.


Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

30W/60W Version
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee
90W,120W/150W/180W Version
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years GuaranteeDualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years GuaranteeDualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years GuaranteeDualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee
Zigbee Wireless Intelligent Control Diagram
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee
Zigbee Wireless Intelligent Control Operator Interface
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee
DALI Device
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

DALI Intelligent Control Diagram
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

DALI Intelligent Control Operator Interface
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee
Packaging Information
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Shipment
Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee


Dualrays 30W S4 Series Die Casting Al LED Street Lights IP66 IK10 Protection 5 Years Guarantee

Q1: What is the warranty for the LED street light?
RE: For the LED street light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?
RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:
Warm white = 3000±200K
Natural white = 4000±200K
Pure white = 5000±200K
Cool white = 5700±200K
Q3: Is there a MOQ?
RE: No MOQ, Sample order for testing welcome.

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q7: Do you offer OEM or ODM?
RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
1. We can provide you with our present products with your own label;
2. We can modify our products as your request;
3. We can even develop totally new products based on your design;
Q8: What‘re the chips and drivers used?

RE: High brightness NICHIA LEDs light source,Meanwell drivers for standard configuration.
