Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Product Categories
DUALRAYS LIGHTING Co.,LTD.
Contact Now

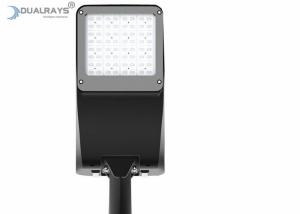

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

  • 1
  • 2
  • 3

Brand Name : Dualrays Optoelectronics

Model Number : DR-ST030-DG1

Certification : CE,RoHS,LM79,LM80

Place of Origin : Shenzhen, China

MOQ : 1pcs

Price : Negotiated

Payment Terms : Western Union, T/T, L/C

Supply Ability : 100000PCS/Month

Delivery Time : 5-15 business days

Packaging Details : Netural Package,color box package,1PCS/CTN,590(L)*380(W)*200(H)mm

Luminaire Efficiency : 150lm/W

IP Rating : IP66

Power Factor : PF>0.9

Switching Cycle before Failure : 100,000

Life Span : >50,000hrs

Warranty : 5 years

Contact Now

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Dualrays S4 Series 30W Outdoor LED Street Light--Details:
> Excellent heat dissipation with Die-casting Al;
> IP66 and IK10 for outdoor street lighting application;
> Adopting SMD3030 LEDs light source, high output lighting efficiency 140lm/W, high Color Rendering Index (CRI>70/80Ra);
> Class I Protection;
> Driver and housing separated by spacers;
> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> 5 years warranty;
> Operation Temperature: -40 ~ +55℃;
> Storage Temperature: -40 ~ +55℃.

Dualrays S4 Series 30W Outdoor LED Street Light--Options:
> Driver: Meanwell ELG/HLG or Sosen for option;
> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming optional;
> Surge Protection: 10KA SPD,20KA Meanwell SPD for option;
> Black RAL9017/ White RAL9016 optional;
> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;
> Customized supported for special projects;
Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert
* Roadways.
* Avenues.
* Walkways.
* Loading Area.
* Parking lot.
* Playground.
* Sport and Stadium.


Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Model No. DR-ST30-DGX
Rated Power/W 30W
Systen Efficiency/LPW 150LPW
Lumen Output/ Im 4.5.000+5%
Rated Input Voltage/V AC100~277V 50/60Hz
LED Light Source SMD3030
SDCM <6
CCT/K 3000K/4000K/5000K/5700K/6500K
Color Index 70Ra (>80Ra for Option)
Power Factor >0.95
THD <10%
Beam Angle (Optional) Type I/ Type II (Long and medium)/ Type III (Medium)/Type IV (Medium)/Type V (Medium)
UGR <25
Surge Protection 6~10KV SPD built in driver, Exterior SPD 10KV (PHILPS) OR 20KV Meanwell Optional
LED Driver Meanwell ELG/HLG, Sosen
Dimming options 0/1-10V/PWM/DALI/Zigbee
Protection Class Class I
Finishing Color (Optional) Black RAL9017/ White RAL9016
Material Aluminum+PC+Toughened Glass
Life Span/hrs >50000
Pipe Diameter ø60mm
Certificate CE,ROHS,TUV/GS,LM79,LM80

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert
30W/60W Version
Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert
90W,120W/150W/180W Version
Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert
Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert
Packaging Information
Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Shipment
Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert

Dualrays S4 Series 30W 150lmW Outdoor LED Street Lights IP66 Protection with CE RoSH Cert
