High Efficiency Outdoor LED Street Lights With 60W IP66 IK10
Outdoor LED Street lights Production details:
* Processional optics design,Type III Medium(90°x140°),Type III Short 90°x120°,Type V 120°,Type II 80°x135° for option;
* Top brand conponents,NICHINA LEDs light source,Meanwell driver,durable;
* Modular design optimizes construction and assembly, allows for easy maintenance, upgrade and SKD purchasing for local assembly;
* Tool-less access to the down-opening driver door makes easy maintenance and operation;
* Multi beam angle for different occassions;
* Intelligent dimming control available,photocell controller is available;
* Maintenance Free,IP66 protection,IK10 vibration grade;
* 10KV/20KV SPD for option;
* LM-79/80 reports available;
* CE,RoHS listed,5 years’ warranty.
Why choosing DUALRAYS:
* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;
* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;
* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;
* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.
2020 Top sae Heat Dissipation Cobra Led Street Light IK10 Vibration Grade 180W 10KV / 20KV SPD IP66 with motion sensor
Outdoor LED Street Lights Production sepecification:
> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;
> Die-casting Al for excellent heat dissipation;
> Superior PC reflector-optic for low glare applications,and toughened glass protection;
> IP66 and IK10 for road lighting application;
> Driver and housing separated by spacers;
> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

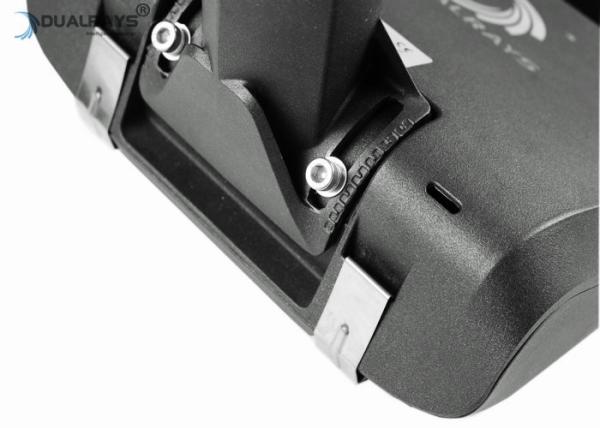

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;
> 10KA SPD,20KA Meanwell SPD optional;
> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;
> Customized supported for special projects;

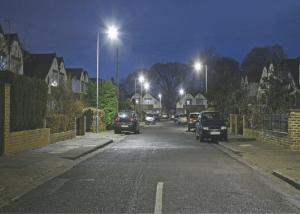

* Roadways.
* Avenues.
* Walkways.
* Loading Area.
* Parking lot.
* Playground.
* Sport and Stadium.
| Item No. | DR-ST60-DGXP | Housing color | Silver, Black, Grey etc |
| Input Voltage | AC100-277V 50/60HZ | CRI | >80Ra(>70Ra for option) |
| Power | 60W | IP Rating | IP66 |
| Working Temp | -40 to +50℃ | IK Rating | IK10 |
| Luminous Flux | 16,800lm | Material | AL+PMMA |
| Beam Angle | 60*120º/75*135° | LED Efficiency | 150LPW |
| CCT | 2700-6500K | Certificate | CE, RoHS, |
| Dimension | 950(L)*455(W)*125(D)mm | Warranty | 5 years |
| UGR | <25 | Driving Brand | Meanwell/Sosen |
30W/60W Version
90W,120W/150W/180W Version
Zigbee Wireless Intelligent Control Operator Interface
We are proud to provide innovative designs,affordable LED luminaires,high-touch service, excellent customer experience for the leading distributor,wholesaler,and contractor from Western Europe and Oceania.
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
(Partnership)
Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.
(Customer Portfolio)
Dualrays is practicing the enterprise management principle “Perfect or Nothing”.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
Packaging Information
