Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

  • 1
  • 2
  • 3

Brand Name : DUALRAYS

Model Number : DR-TPL030-EG21

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen,China

MOQ : 6pcs

Price : Negotiated

Payment Terms : Western Union, T/T, L/C

Supply Ability : 100000PCS/Month

Delivery Time : 5-15 business days

Packaging Details : Netural Package/OEM and ODM Package Available

Rated Power : 30W

LEDs Typ/Qty : SMD2835 240pcs

Luminaire Efficiency : 160lm/W

Luminous Flux : 4,800±5%

Color Index : >80Ra

Beam Angle : 120°

IP Rating : IP65

AC Input Vol : AC100~277V 50/60Hz

Power Factor : PF>0.9

Lumen Maintenance @ 6000 hrs : >90%

Switching Cycle before Failure : 100,000

Power Supply : Boke

Contact Now

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W LED Tri Proof Light--Detailed Product Description

Model No.: D5 Series Warranty: 5 Years
Power: 30W Protection: IP66,IK10
Energy efficient: 160 lm/w Beam Angle: 120°
Lumin Output/lm 4,800±5% Material: Al+PC
Dualrays D5 Series 2ft 30W LED Tri Proof Light--Features
> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs, up to 160 lm/w energy efficient;
> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;
> Single or Double wiring;
> IP65/IP66 and IK10 for all industrial areas of application;

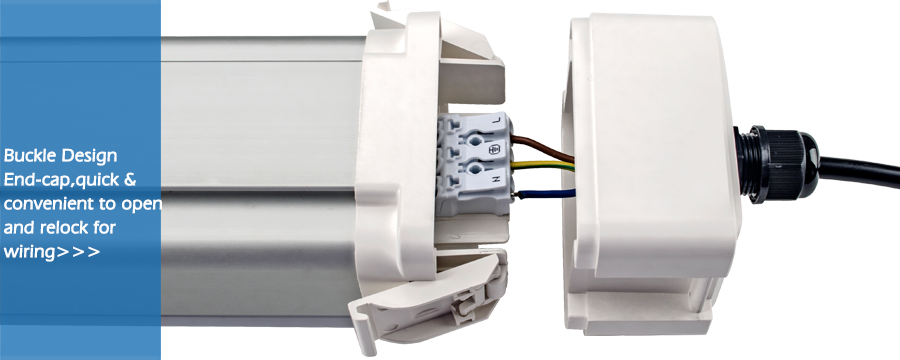

> Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;;

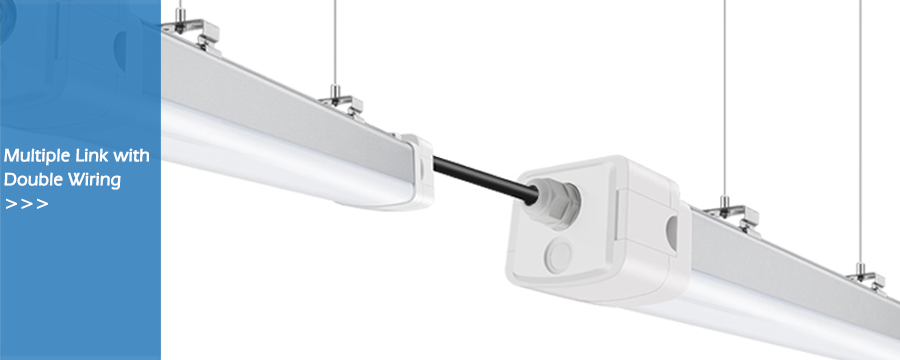

> Multiple Link with double wiring;
> Completely mercury free and no UV or IR;
> L80/B10 @ 50.000h;
> 5 years warranty;

Dualrays D5 Series 2ft 30W LED Tri Proof Light--Options
> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.

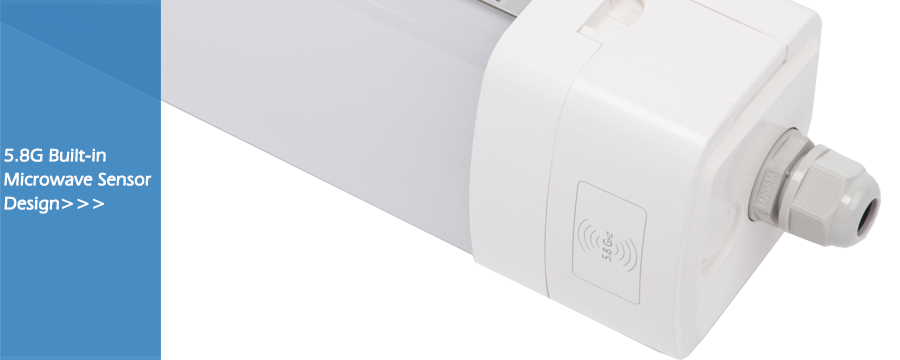

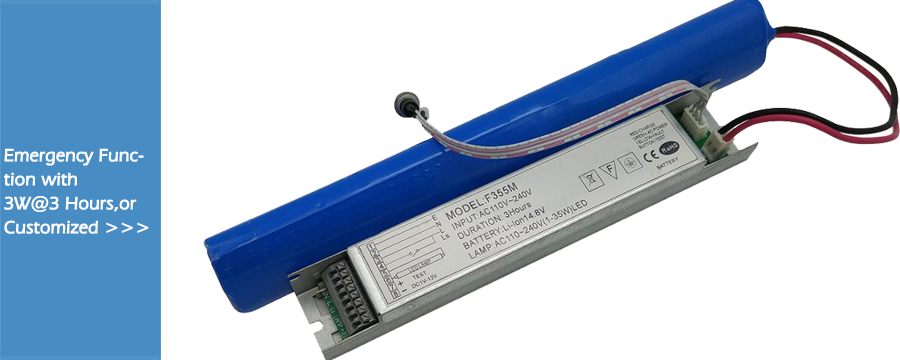

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

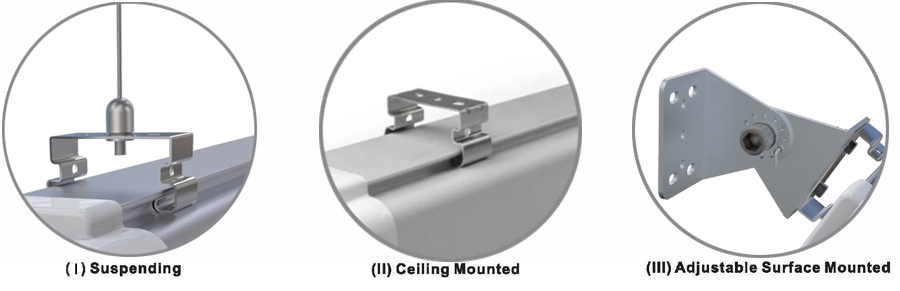

> Installation: Suspension, Ceilign Mounted and adjustable surface mount.
> Single or double wiring and connection.
> Customized supported for special projects.
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
* Replacement for fluorescent NCF
* Workshops and warehouse
* Garage and car parks
* Sport facility
* Corridor/Gallery/Corridor
* Outdoor & Indoor Locations

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
Character/Length
2ft
3ft
4ft
5ft
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
A
600mm
900mm
1200mm
1500mm
B
90mm
90mm
90mm
90mm
C
74mm
74mm
74mm
74mm

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
DALI Device
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

DALI Intelligent Control Diagram
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

DALI Intelligent Control Operator Interface
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output


Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

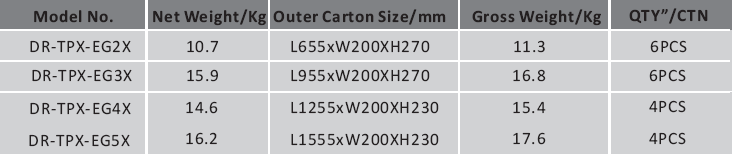

Packaging Information
Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output

Dualrays D5 Series 2ft 30W Emergency Sensor Waterproof Led Tube Lights 160LmW Constant Current Output
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
