20w 30w 40w 50w 80Ra LED Tri Proof Light For Farm and industrial lighting
> BASELine Version:
> PROLine Version: 130LPW(Transparent Cover)
> PRIMELine Version: 160LPW(Transparent Cover)
>High Brightness SAN'AN SMD2835 LEDs,BOKE High PF Flicker-free Driver DIP Switch Power Adjustment Optional;
> Against Water Pressure of 100bar(1450psi) and Temperature of 80°C;
> IP69K PMMA IK06 Anti-ammonia/UV /PC IK10 Anti-UV Protection;
> 120°beam angle;
> Single or Double Wiring Optional,Linkabkle Thorugh Double End Wiring;
> Multiple Installations: Suspension, Wall Mounting;
> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,
> 304/316 Stainless Steel End Cap & Bracket,corrosion-proof;
> No UV or IR and completely mercury free;
> L70/B20 @ 54.000h;
> Customized supported for special projects;
> SAN'AN SMD2835 LEDs: LM80/TM-21 Available;
> LM79/TM21/ISTMT/LCP and IES/LDT files available;
(D6 LED Triproof Light)
> Europe Market: CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark;
> North American Market: ETL/CETL,DLC Premium Pending;
> Oceania Market: SAA,C-Tick,RCM
| Model No. | DR-TP020-FG2XP | DR-TPL030-FG4XP | DR-TPL040-FG5XP | DR-TPL050-FG5XP |
| System Watts/W | 20W | 30W | 40W | 50W |
| System Efficiency/LPW | 130LPW / 160LPW Optioanl |
| Lumen Output/lm | 2.600/3.200±5% | 3.900/4.800±5% | 5.200/6.400±5% | 6.500/8.000±5% |
| Rated Input Voltage/V | AC200~240V 50/60Hz (AC100~277V, 50/60Hz Optional) |
| LEDs Light Source | SMD2835 |
| SDCM | <6 |
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) |
| CRI/Ra | >80Ra (>70Ra for Option) |
| Power Factor | >0.91 |
| THD | <10% |
| Beam Angle(Optional) | 120° |
| UGR | <22 |
| LED Driver | BOKE Fixed Power/ DIP Switch Power Adjustable Optional |
| IP Rating | IP65 |
| IK Level | IK08 |
| Dimming(Optional) | 1-10V, DALI |
| Protection | IP69K |
| Sensor(Optional) | Daylight sensor/Microwave Sensor |
| Protection Class | ClassⅠ |
| Finishing Color(Optional) | RAL9016 Matt White |
| Material | PC+PC (PMMA / Tempered Glass Optional) |
| Lifespan/hrs | 54.000 Hrs (Ta=30℃@L70) |
| Operation Temp/℃ | -40°C to + 50°C(-40°F to 122°F) |
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) |
| Installation(Optional) | Suspension / Ceiling Mounting Optional |
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
> Replacement for fluorescent NCF;
> Cattle farm;
> Pig farm;
> Industrial and Agricultural applications;

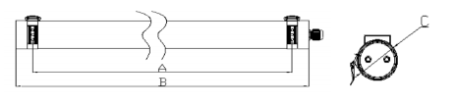

| Character/Length | 2ft | 4ft | 5ft |  |
| A | 525.9mm | 1125.9mm | 1425.9mm |
| B | 590m | 1190mm | 1490mm |
| C | 78.2mm | 78.2mm | 78.2mm |
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
