SMD3030 UFO High Bay Light Die Castign Al Black Shell Corrosive Resistant Powder Coated

Name: SMD3030 UFO High Bay Light Die Castign Al Black Shell Corrosive Resistant Powder Coated
Brand: DUALRAYS
Price: 1 USD

Quality SMD3030 UFO High Bay Light Die Castign Al Black Shell Corrosive Resistant Powder Coated wholesale

Brand Name : DUALRAYS

Certification : CE ROSE UL SAA

Place of Origin : CHINA

MOQ : 2

Price : good price with good quality(low price with bad qualty)

Payment Terms : T/T, Western Union, L/C

Supply Ability : 50000/month

Delivery Time : within 1 week

System Watts/W : 100W 150W 200W 240W 300W

LEDs Light Source : SMD3030

Color : Black

certificates : CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Contact Now

Customers's No 1 choose 2022 NEW UFO LED High Bay

SMD3030 UFO High Bay Light Die Castign Al Black Shell Corrosive Resistant Powder Coated

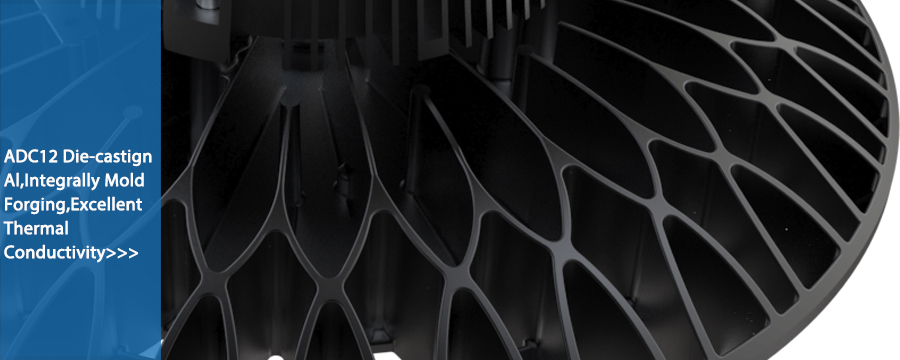

> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity;

> High Brightness LUMILEDS LUXEON SMD3030 2D LEDs, SOSEN/Meanwell HBG/ELG/HLG Round/Rectangle

Driver;

> IP65 / IK08 Protection;

> 60°/90° (with Pearl or Stripe Lens)/120° (without PC or Toughened Glass Cover) /140° (with Grille Stripe PC

Cover) beam angle optional;

> Corrosive Resistant Powder Coated Finish;

> D-Mark tested for the use in paper production,wood processing etc with toughened glass;

> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;

> Various intelligent control: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;

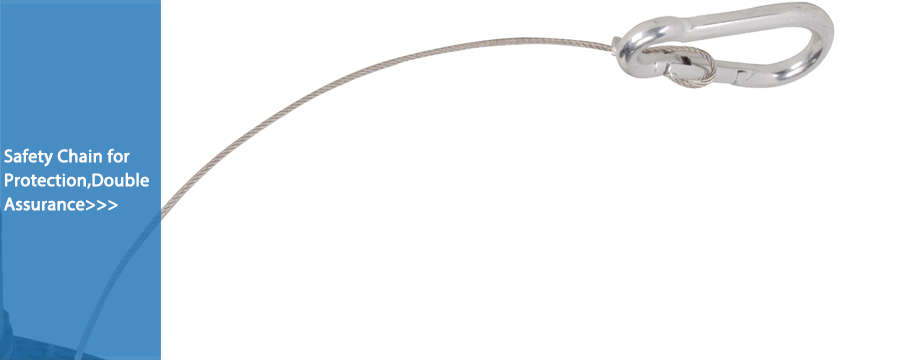

> Safety chain reserved for labor cost saving and double safety assurance;

> No UV or IR and completely mercury free;

> L70/B20 @ 70.000h;

> Customized supported for special projects;

Options:

> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen;

> Controls and Dimming: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;

> Reflector : PC reflector / Al reflector;

> Lens : 60°/90° (with Pearl or Stripe Lens)/120° (without PC or Toughened Glass Cover) /140° (with Grille

Stripe PC Cover);

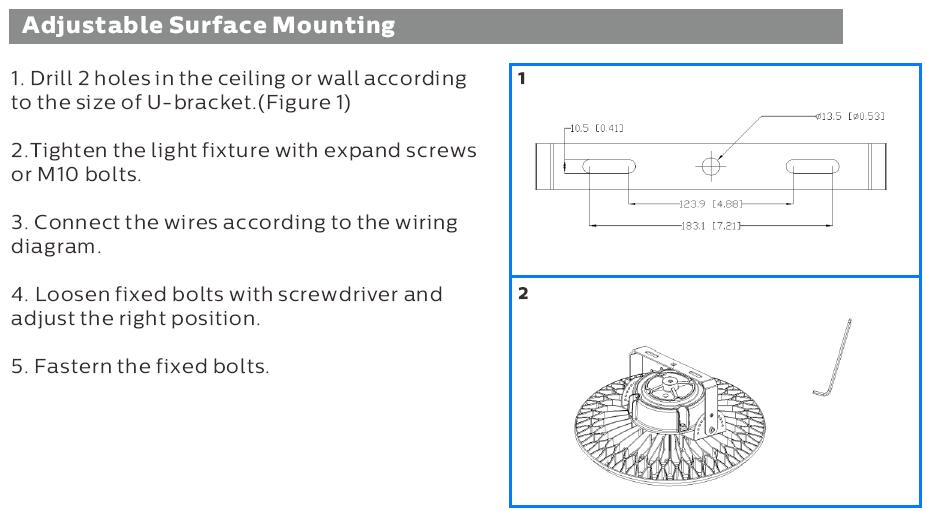

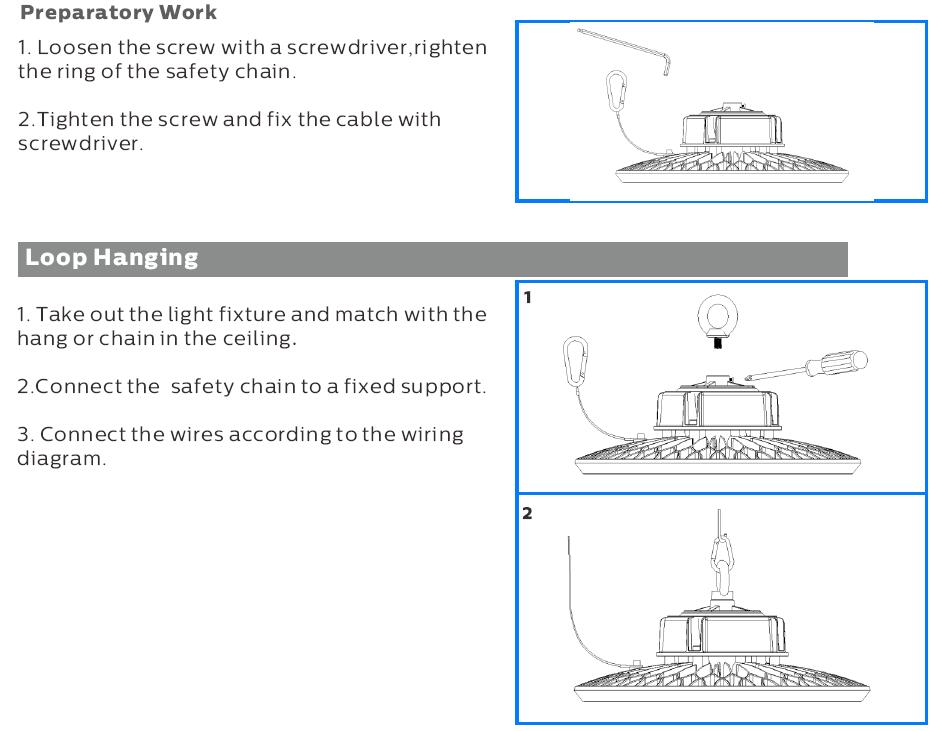

> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

> Factories / Warehouses / Supermarket

> Exhibitions / Showrooms / Animal Farm

> Barns and Riding Halls / Logistic Center

> High Rooms and Halls / Stadium / Chemical Plant

> Traditional lamp replacement

Model No.	DR-HB100-EGXP	DR-HB150-EGXP	DR-HB200-EGXP	DR-HB240-EGXP	DR-HB300-EGXP
System Watts/W	100W	150W	200W	240W	300W
System Efficiency/LPW	140LPW
Lumen Output/lm	14.000±5%	21.000±5%	28.000±5%	33.600±5%	42.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	60°/90°/120°/140°
UGR	<25
Surge Protection	3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell HBG/ELG/HLG,Sosen
IP Rating	IP65
Dimming(Optional)	0/1-10V/DALI/Zigbee
Sensor(Optional)	Motion Sensor,Daylight Sensor
Emergency(Optional)	Available (30W @ 3Hrs for Standard)
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

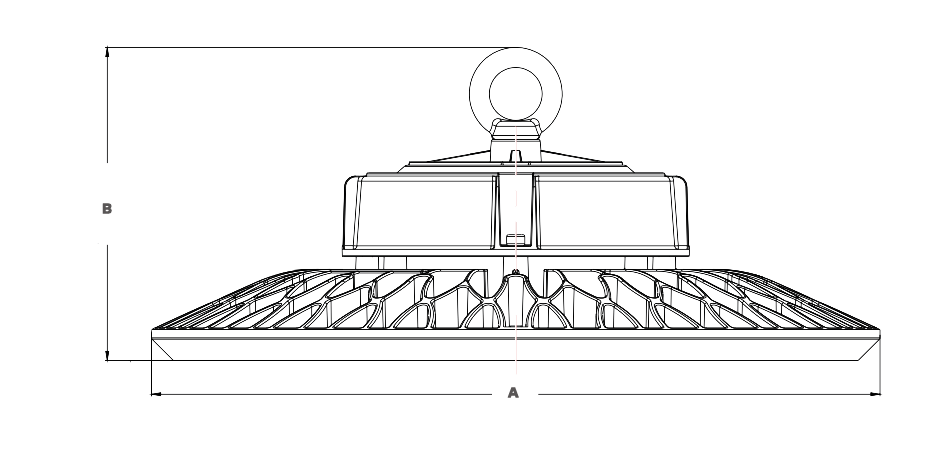

Character/Power	100W	150W	200W	240W	300W
A / mm	Ø280	Ø338	Ø400	Ø400	Ø440
B / mm	164	182	164	172	182

SMD3030 UFO High Bay Light Die Castign Al Black Shell Corrosive Resistant Powder Coated

DALI Device
SMD3030 UFO High Bay Light Die Castign Al Black Shell Corrosive Resistant Powder Coated

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

SMD3030 UFO High Bay Light Die Castign Al Black Shell Corrosive Resistant Powder Coated

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-HB100-EGXP	4.2	355350165	4.9	1PCS/CTN
DR-HB150-EGXP	4.6	415410175	5.4	1PCS/CTN
DR-HB200-EGXP	4.8	475470195	5.6	1PCS/CTN
DR-HB240-EGXP	6.9	475470195	7.8	1PCS/CTN
DR-HB300-EGXP	7.5	500495195	8.8	1PCS/CTN
