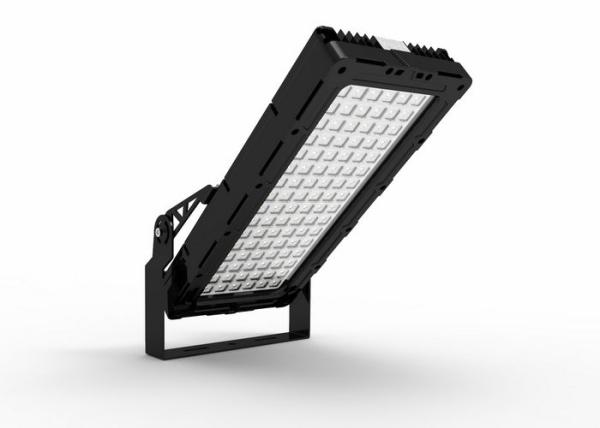

180° Adjustable 300W 130LPW Led Sports Field Lighting SMD5050 Led Sports Floodlights

Product Categories

DUALRAYS LIGHTING Co.,LTD.

Contact Now

180° Adjustable 300W 130LPW Led Sports Field Lighting SMD5050 Led Sports Floodlights

Name: 180 Adjustable 300W 130LPW Led Sports Field Lighting SMD5050 Led Sports Floodlights
Brand: DUALRAYS
Price: 1 USD

Quality 180° Adjustable 300W 130LPW Led Sports Field Lighting SMD5050 Led Sports Floodlights wholesale

Brand Name : DUALRAYS

Model Number : DR-SPL600-DGXX

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : Negotiated

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 30,000pcs/month

Delivery Time : 5-15 Bussiness Day

Packaging Details : Netural Package,OEM/ODM Package Available,1PCS/CTN

System Watts/W : 300W

System Efficiency/LPW : 130~140LPW / 150~160LPW Optional

CCT/K : 5000K for Standard (3000K/4000K/5700K/6500K Optional)

Rated Input Voltage/V : AC100~277V, 50/60Hz

Surge Protection : 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional

LED Driver : Meanwell ELG/HLG

Contact Now

300W LED Sport Flood Light High Brightness 180°Adjustable Supporting Fixture

> Multi-scale lens to create well-balanced distribution and reduce glare;

> Shield to Reduce the Light Glare;

> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;
> Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;

> 180°Adjustable Supporting Fixture;

180° Adjustable 300W 130LPW Led Sports Field Lighting SMD5050 Led Sports Floodlights

> Multiple and multipurpose sports facilities and arenas

> Stadiums and Racing tracks

> Public squares

> Outdoor arenas

> Indoor sports arenas and halls

Model No.	DR-SPL300-DGXX	DR-SPL600-DGXX	DR-SPL900-DGXX	DR-SPL1200-DGXX	DR-SPL1500-DGXX	DR-SPL1800-DGXX
System Watts/W	300W	600W	900W	1200W	1500W	1800W
System Efficiency/LPW	130~140LPW / 150~160LPW Optional
Lumen Output (Max) /lm	48.000±5%	96.000±5%	144.000±5%	192.000±5%	240.000±5%	288.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD3030 / SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	Symmetrical 25°/40°/50°/90° beam angle optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional

180° Adjustable 300W 130LPW Led Sports Field Lighting SMD5050 Led Sports Floodlights

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-DGXX	8.5	585315260	9.7	1PCS/CTN
DR-SPL600-DGXX	17.4	625620260	18.8	1PCS/CTN
DR-SPL900-DGXX	26.1	625820260	28.2	1PCS/CTN
DR-SPL1200-DGXX	34.2	6251150260	36.5	1PCS/CTN
DR-SPL1500-DGXX	39.3	7901240260	42.5	1PCS/CTN
DR-SPL1800-DGXX	42.1	7901240260	46.3	1PCS/CTN

180° Adjustable 300W 130LPW Led Sports Field Lighting SMD5050 Led Sports Floodlights

Q1: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q2: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q3: What brands of driver do you supply for luminaire fixture?

RE: Meanwell, Boke, Sosen, Moso and other brands available.

Q4. What brands of LEDs source you supply for your luminaire fixture?

RE: , Osram, Cree, Nichia,etc.

Q5.How to explain “illuminance“?

RE: The intensity of light falling on a surface area. If the area is measured in square feet, the unit of illuminance is footcandles(fc). If measured in square metres, the unit of illuminance is Lux.

Q6.What’s CCT(colour temperature) ?

RE: The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.

Marketing Department

Tel: 0086-755-2306 6948

Fax: 0086-755-6164 1072

Zip Code: 518125
Email: sales08@dualrays.com

Add: 6th Floor,Building 10, Gangzai Industrial Park, Furong Industrial Park,Xinqiao Industrial District,Shajing,Bao‘an District,Shenzhen 518125, P.R.China
