Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights

Product Categories
DUALRAYS LIGHTING Co.,LTD.
Contact Now

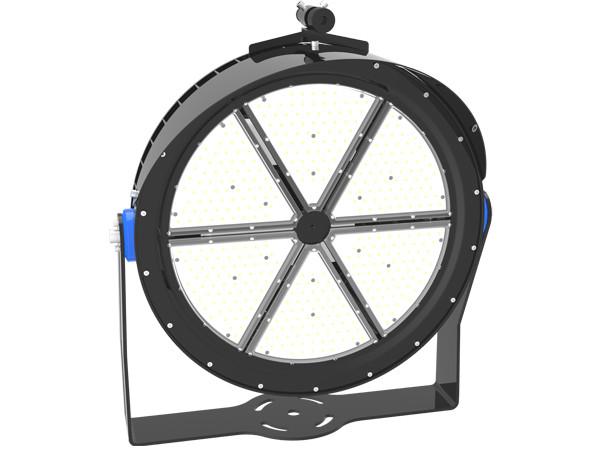

Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights

Brand Name : DUALRAYS

Model Number : DR-SPL800-FGXP

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen, China

Packaging Details : Netural Package/OEM and ODM Package Available

MOQ : 1pcs

Price : USD523.84$ to USD624.93$

System efficiency : 150lm/w

LED Chips : LUMILEDS SMD5050

Beam Angle : 30/60/90°

Power Range : 300/400/600/800W

Contact Now

DUALRAYS SP6 Sport Light for Stadium Lighting 160lm/w High Efficiency

DUALRAYS SP6 LED Sport Light Spe.pdf

Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights

  • LUMILEDS LUXEON High Brightness SMD5050 LEDs;
  • Meanwell ELG/HLG Driver;
  • IP66 Protection;
  • 30°/60°/90° beam angle optional;
  • Adjustable mounting bracket for wall mast or suspending installation;
  • Air breather design to balance air pressure and moisture prevent;
  • Various intelligent control: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;
  • Customized supported for special projects Junction box for convenient wiring from the driver box

Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights

Model No.
 DR-SPL300-FGXP DR-SPL400-FGXP DR-SPL600-FGXP DR-SPL800-FGXP
System Watts/W
 300W 400W 600W 800W
System Efficiency/LPW
 150LPW
Lumen Output/lm
 45.000±5% 60.000±5% 90.000±5% 120.000±5%
Rated Input Voltage/V
 AC100~277V, 50/60Hz
LEDs Light Source
 SMD5050
SDCM
 <5
CCT/K
 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
 >70Ra (>80Ra for Option)
Power Factor
 >0.95
THD
 <10%
Beam Angle(Optional)
 30°/60°/90°
UGR
 <25
Surge Protection
 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
 Meanwell ELG / HLG Optional
IP Rating
 IP65
Dimming(Optional)
 1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time 0.5s
Protection Class
 ClassⅠ
Finishing Color(Optional)
 Black RAL9017(Standard) / White RAL9016 Optional
Material
 Aluminum+PC
Lifespan/hrs
 70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
 - 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
 CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Features:

> High Brightness LUMILEDS LUXEON SMD5050 LEDs, Meanwell HLG / ELG Driver Optional;
> Precision Integrated Die-casting Process,Excellent Thermal Conductivity；
> IP65 / IK08 Protection;
> Symmetrical 30°/60°/90° beam angle optional;
> Corrosive Resistant Powder Coated Finish；
> Multi-scale lens to create well-balanced distribution and reduce glare;
> Shield to Reduce the Light Glare;
> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;
> 360°Adjustable Supporting Fixture;
> No UV or IR and completely mercury free;
> L70/B20 @ 70.000h;
> Customized supported for special projects;
