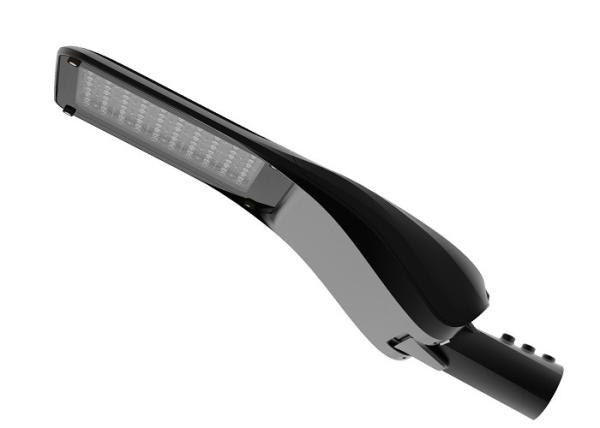

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum

Product Categories

DUALRAYS LIGHTING Co.,LTD.

Contact Now

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum

Name: LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Diecasting Aluminum
Brand: DUALRAYS/OEM
Price: 1 USD

Quality LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum wholesale

Brand Name : DUALRAYS/OEM

Model Number : DR-ST150-DG1

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen,China

MOQ : 2PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000pcs/month

Delivery Time : 5-15 bussiness day

Packaging Details : Netural Package/OEM and ODM Package Available

Price : Negotiated After Inquiry

Material : Aluminum+PC+Toughened Glass

Input Voltage : AC100～277V 50/60Hz

Power : 150W

Lumen : 18.000～22.500lm±5%

CCT : 3000/4000/5700/6500K±200K

Power Factor : >0.95

CRI : >70Ra (>80Ra for Option)

IP Rating : IP66

Warranty : 5 years warranty,7 or 10 years warranty negotiated

Application : Roadways / Avenues / Parking Lot / Playground

Contact Now

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum

Model No.	DR-ST030-DGX	DR-ST060-DGX	DR-ST090-DGX	DR-ST120-DGX	DR-ST150-DGX	DR-ST180-DGX
System Watts/W	30W	60W	90W	120W	150W	180W
System Efficiency/LPW	120LPW/150LPW (Optional)
Rated Input Voltage/V	AC100~277V 50/60Hz
Lumen Output/lm	3.600~4.500±5%	7.200~9.000±5%	10.800~13.500±5%	14.400~18.000±5%	18.000~22.500±5%	21.600~27.000±5%
Finishing Color(Optional)	Black RAL9017 / White RAL9016
Protection Class	ClassⅠ
LED Driver	Meanwell ELG/HLG,Sosen
Dimming(Optional)	0/1-10V/PWM/DALI/Zigbee
Beam Angle(Optional)	TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium)
Lifespan/hrs	>50.000 Hrs (Ta=30 @L70)
Operation Temp/℃	-40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	-40°C to + 65°C(-40°F to 149°F)
Pipe Diameter	φ60mm
Certificate	CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available

30W/60W Version
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum

90W,120W/150W/180W Version

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum

DALI Device
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
