Home > SMD LED Floodlight >

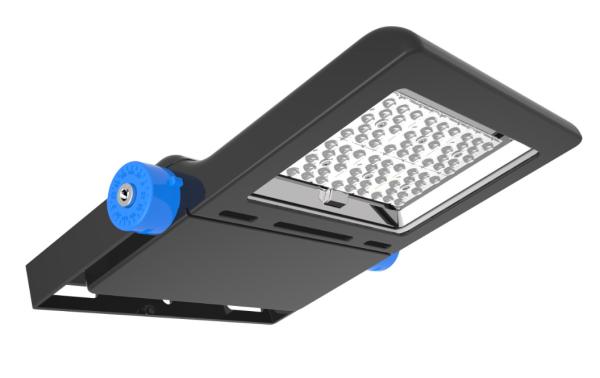

100W Flat LED FLOODLIGHT for Industrial Halls 5 Years Guarantee

Product Categories

DUALRAYS LIGHTING Co.,LTD.

Contact Now

100W Flat LED FLOODLIGHT for Industrial Halls 5 Years Guarantee

Name: 100W Flat LED FLOODLIGHT for Industrial Halls 5 Years Guarantee
Brand: DUALRAYS
Price: 1 USD

Quality 100W Flat LED FLOODLIGHT for Industrial Halls 5 Years Guarantee wholesale

Brand Name : DUALRAYS

Model Number : DR-FL100-CG2

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen,China

MOQ : 2PCS

Price : Negotiated

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000PCS/Month

Delivery Time : 5-15 Bussiness Day

Packaging Details : Netural Package/OEM and ODM Package Available

Applications : Industria Hall

LED light source : 3030

L80 : >50000hrs

Material : Die-cast aluminum

Color Temp : 5000K

PF : >0.95

Warranty : 5 years

Beam angle : 60°/120° for option

Contact Now

100W Flat LED FLOODLIGHT for Industrial Halls 5 Years Guarantee

> 100W LED Flood Light Flat 13500LM for Outdoor Security and Decoration

> Built-in Plug and Play Motion Sensor with Compact Structure;

> L70/B20(25℃)65.000h;

100W Flat LED FLOODLIGHT for Industrial Halls 5 Years Guarantee

Model No.	DR-FL050-CGXX	DR-FL100-CGXX	DR-FL150-CGXX	DR-FL200-CGXX	DR-FL300-CGXX
System Watts/W	50W	100W	150W	200W	300W
System Efficiency/LPW	120~125LPW
Lumen Output/lm	6.500±5%	12.500±5%	18.750±5%	25.000±5%	37.500±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Sosen,Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional)	Motion Sensor
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+Toughened Glass
Lifespan/hrs	62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	100W	150W	200W	240W	300W
A / mm	389	389	437	493	582
B / mm	297	297	346	379	444
C / mm	57	57	57	57	60

100W Flat LED FLOODLIGHT for Industrial Halls 5 Years Guarantee

100W Flat LED FLOODLIGHT for Industrial Halls 5 Years Guarantee

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
100W Flat LED FLOODLIGHT for Industrial Halls 5 Years Guarantee

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
100W Flat LED FLOODLIGHT for Industrial Halls 5 Years Guarantee

(Partnership)

Product Tags:

high bay led shop lights

wireless led outdoor flood lights

100W Flat LED FLOODLIGHT for Industrial Halls 5 Years Guarantee Images
