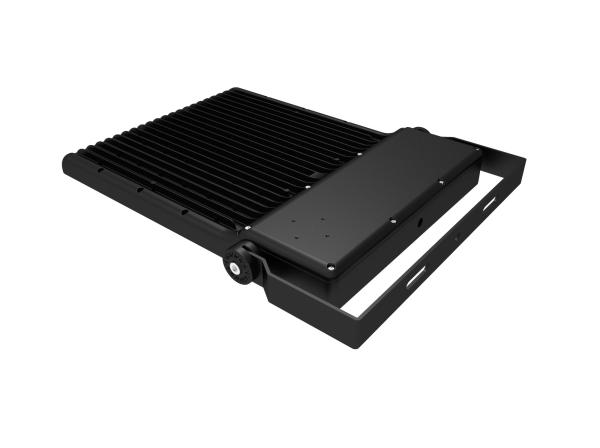

150W Industrial Area Illumination Lighting LED FLOOD Light SMD 3030

Name: 150W Industrial Area Illumination Lighting LED FLOOD Light SMD 3030
Brand: DUALRAYS
Price: 1 USD

Quality 150W Industrial Area Illumination Lighting LED FLOOD Light SMD 3030 wholesale

Brand Name : DUALRAYS

Model Number : DR-FL150-CG2

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen,China

MOQ : 2PCS

Price : Please inquiry for the latest price

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000PCS/Month

Delivery Time : 5-15 Bussiness Day

Packaging Details : Netural Package/OEM and ODM Package Available

Power : 150W

L70 : >65000hrs

Material : Al

CE : Yes

PF : >0.95

Beam angle : 60°/90°/120°

Contact Now

150W Industrial Area Illumination Lighting LED FLOOD Light

> 100W LED Flood Light Flat 13500LM for Outdoor Security and Decoration

> Built-in Plug and Play Motion Sensor with Compact Structure;

> L70/B20(25℃)65.000h;

150W Industrial Area Illumination Lighting LED FLOOD Light SMD 3030

Model No.	DR-FL050-CGXX	DR-FL100-CGXX	DR-FL150-CGXX	DR-FL200-CGXX	DR-FL300-CGXX
System Watts/W	50W	100W	150W	200W	300W
System Efficiency/LPW	120~125LPW
Lumen Output/lm	6.500±5%	12.500±5%	18.750±5%	25.000±5%	37.500±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Sosen,Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional)	Motion Sensor
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+Toughened Glass
Lifespan/hrs	62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	100W	150W	200W	240W	300W
A / mm	389	389	437	493	582
B / mm	297	297	346	379	444
C / mm	57	57	57	57	60

150W Industrial Area Illumination Lighting LED FLOOD Light SMD 3030

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-FL050-CGXX	3.6	355350165	4.5	1PCS/CTN
DR-FL100-CGXX	3.8	355350165	4.7	1PCS/CTN
DR-FL150-CGXX	4.5	415410175	5.8	1PCS/CTN
DR-FL200-CGXX	5.7	475470195	7.3	1PCS/CTN
DR-FL300-CGXX	9.3	475470195	11.5	1PCS/CTN

150W Industrial Area Illumination Lighting LED FLOOD Light SMD 3030

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
150W Industrial Area Illumination Lighting LED FLOOD Light SMD 3030

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
150W Industrial Area Illumination Lighting LED FLOOD Light SMD 3030
