Heat Dissipation UFO LED High Bay Light 100W Aluminium Alloy

Name: Heat Dissipation UFO LED High Bay Light 100W Aluminium Alloy
Brand: DUALRAYS
Price: 1 USD

Quality Heat Dissipation UFO LED High Bay Light 100W Aluminium Alloy wholesale

Brand Name : DUALRAYS

Model Number : DR-HB100-EG1

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen,China

MOQ : 2pcs

Price : Negotiated

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000PCS/Month

Delivery Time : 5-15 Bussiness Day

Packaging Details : Netural Package/OEM and ODM Package Available

Life span : >50000h

CCT : 3000k~5700k

Power Factor : >0.95

Beam angle : 60°/120, for option

Contact Now

Heat Dissipation UFO LED High Bay Light 100W Aluminium Alloy

UFO LED High Bay Features:

* The luminaire assembly meets dust and moisture rating of IP65 per IEC60529 and impact protection of IK08 per EN62262, ensure long life and protection from the environment;

* Optic lens with 60°/90°/120° optional;

* High quality Meanwell/Sosen power supply;

* IP65 and IK10 for all industrial areas of application;

* D-Mark tested for the use in paper production, wood processing etc;

* No UV or IR and completely mercury free.

Advantages:

* Build strategic partnership with international top brands such as CREE, LUMILEDS, NICHIA, MEANWELL,etc.

* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.

* OEM/ODM is available. We supply customized service for our customers to meet their marketing;

* HB3 series UFO high bay is our private module, more competitive and higher quality;

Item No.	DR-HB100-EG2	Housing color	Black
Input Voltage	AC90-305V 50/60HZ	CRI	>80
Power	100W	IP Ranking	IP65
Working Temp	-40 to +50℃	Power Factor (PF)	＞0.9
Luminous Flux	14,000lm	Material	Die-Casting Aluminum
LED QTY	161PCS	Light Source	SMD3030
Beam Angle	120º	LED Efficiency	140lm/W
CCT	2700-6500K	Certificate	CE, RoHS,
Dimension	ø260*190mm	Warranty	5 years
Chip Brand	Osram	Driving Brand	Meanwell/MOSO

Heat Dissipation UFO LED High Bay Light 100W Aluminium Alloy

> Shipyards;

> Mines;

> Workshops;

> Warehouse;

> Highway toll stations;

> Gas stations;

> Supermarkets;

> Exhibition center;

Heat Dissipation UFO LED High Bay Light 100W Aluminium Alloy

Character/Power	100W	150W	200W	240W
A	Ø350mm	Ø350mm	Ø420mm	Ø420mm
B	210mm	210mm	220mm	220mm

Heat Dissipation UFO LED High Bay Light 100W Aluminium Alloy

Q1: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded from our Website(www.dualrays.com).

Q2: What’s your main product line is made ?

RE: 5 product lines.We focus on intelligent industrial LED luminaires,so our main products includes LED flood light,LED high bay,LED tri-proof light,LED street light,LED Linear trunking rail system.

Q3.What’s the fire rating categories ?

RE: VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.

HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.

TP(b)-Slow burning rate <50mm / min for thickness <3mm.

TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.

Q4.What’s Watt ?

RE: The unit of electrical power as used by an electrical device during its operation. Many lamps come with rating in watts to indicate their power consumption.

Q5. How many engineers of your R&D team?

RE: 10-15 R&D staffs with more than 10 years experience in LED luminaires industry

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

Product Tags:

high bay led shop lights

wireless led outdoor flood lights

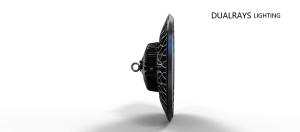

Heat Dissipation UFO LED High Bay Light 100W Aluminium Alloy Images
